FENGXIE Electronic is a high-tech enterprise specializing in R & D, production and sales of flat wire coils,
triple insulation wire coil, high-power inductors and metal stamping parts.

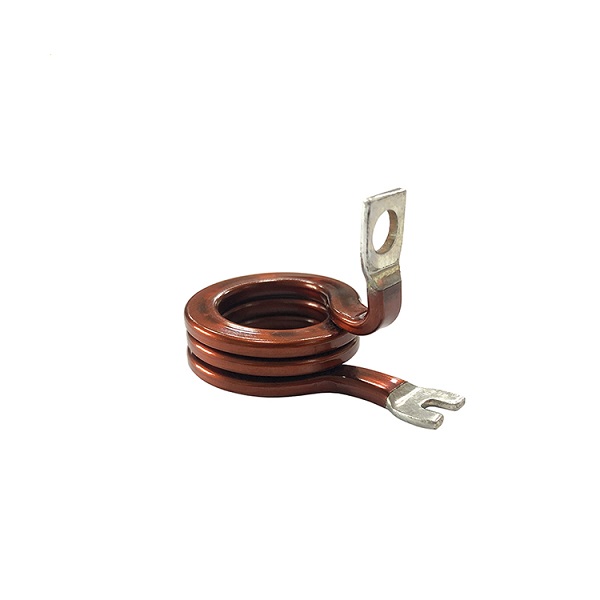

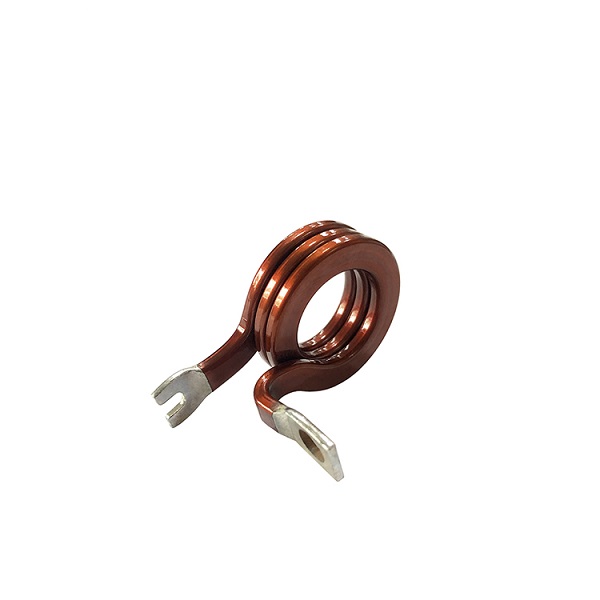

5G Communication Customized Coil
5G Communication Customized Coil
5G Communication Customized Coil
5G Communication Customized Coil
5G Communication Customized Coil
5G Communication Customized Coil

5G Communication Customized Coil

  • Brand: Fengxie or custom your brand
    Origin: Dongguan, China
    Specification: Customized
  • Parameter

Customizable Range



Item

Flat wire coil

Tips

Material

200℃~220℃ Class Flat Enameled Copper /Aluminum Wire/Bare Copper/Bare Aluminum Wire, etc.

Use 200~220 class wire to make the coil temperature resistance better

Wire thickness(mm)

0.05~6.0

/

Wire width(mm)

0.6~20.0

The maximum width to thickness ratio that can be wound is 30 times

Cross-sectional area(mm²)

0.1~60mm²

/

Winding Method

Vertical Winding, Flat Winding, Bifilar Winding

/

Winding Direction

Clockwise Winding, Counterclockwise Winding

/

Shape

Round/Rectangle/Racetrack/Triangle/Trapezoid

/

Processing

Winding/Bending/Paint removal/Soldering/Perforating/Riveting/Welding/Tapping

The diameter of the inner hole should be more than 1.5 times the wire width

Height of coil

≤95mm(0.75~200 Turns)

Height of Coil Calculation:

Height=Wire thickness*Gas Coef*Turns
