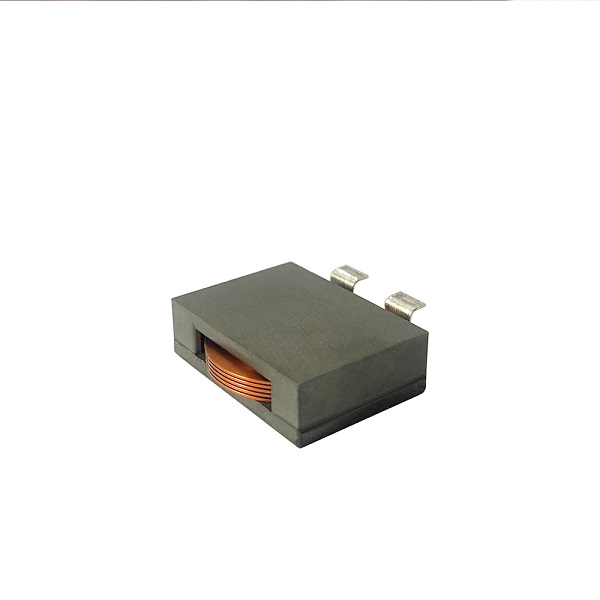

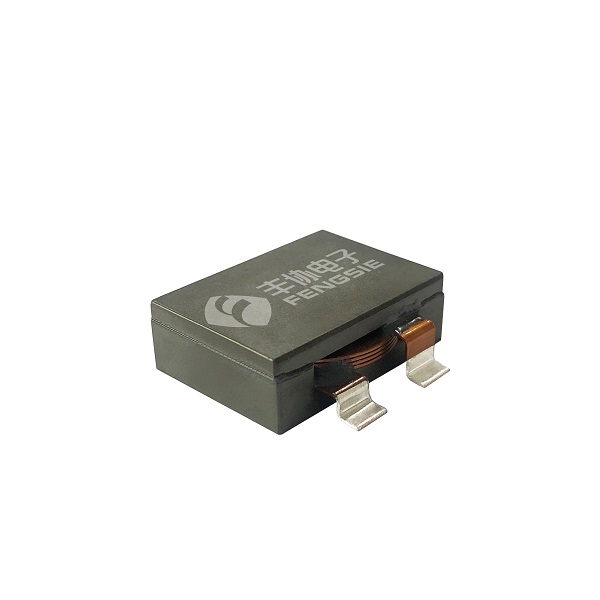

FENGXIE Electronic is a high-tech enterprise specializing in R & D, production and sales of flat wire coils,
triple insulation wire coil, high-power inductors and metal stamping parts.

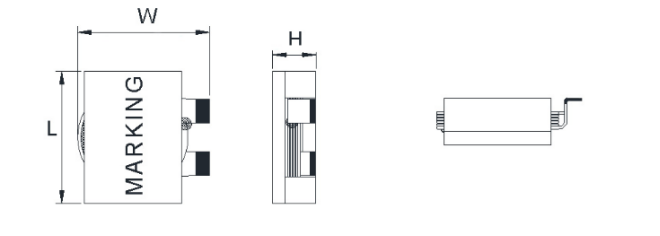

Type | L×W×H(mm) | Inductance(μH) | DCR(mΩ) | Saturation Current(A) | Temperature Rise Current(A) |
FXSERI1407 | 14.5*14*6.7 | 2.60~2.60 | 8.00~16.00 | 18.00~18.00 | 2.60~2.60 |
FXSERI2212 | 22.6*22.5*12 | 0.57~12.70 | 5.00~70.00 | 13.00~40.00 | 0.57~12.70 |
FXSERI2508 | 25*25*8.4 | 1.60~7.30 | 4.30~60.00 | 15.00~28.00 | 1.60~7.30 |
